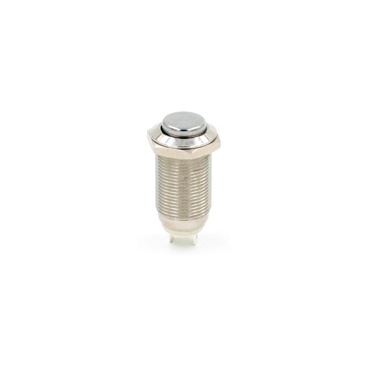

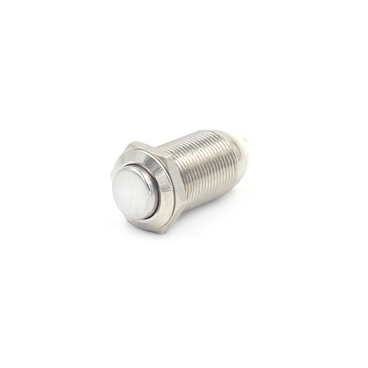

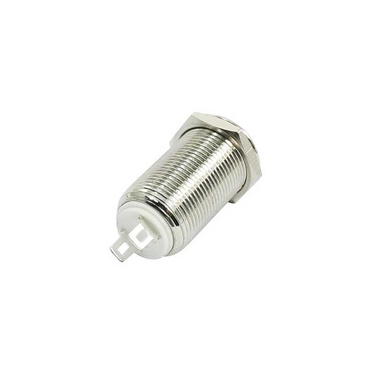

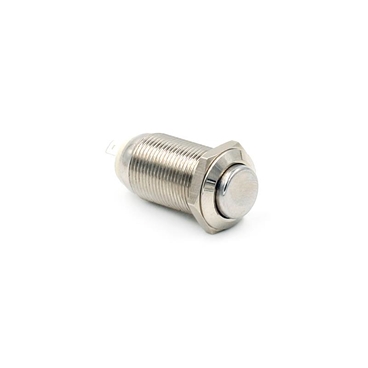

12mm Self-locking Latching Stainless Steel Metal Push Button Switch High Flush 2A 36VDC

SKU
SW-PB-036
Customer #
MOQ
50
Packaging
50pcs/lot
Unit Price
RFQ

Payment Accepted

Bulk Order

Unit Price

<100 RFQ
100+ RFQ
200+ RFQ
500+ RFQ

Buyer Protection

  • Full Refund if you don't receive your order
  • Full or Partial Refund, if the item is not as described

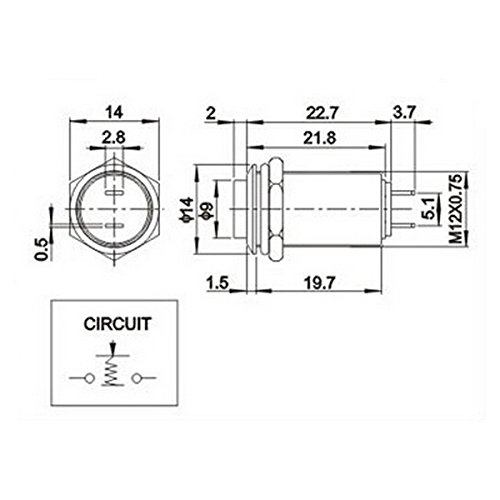

Specification:

  • Tail configuration: Connection terminal(2.8 X 0.5)

  • Switch Rating: 2A/36VDC

  • Contact resistance: ≤50mΩ

  • Insulation resistance: ≥1000mΩ

  • Dielectric intensity: 2000VAC

  • Operation Temperature: -20℃ ~ +55℃

  • Mechanical life: 500,000 cycles

  • Electrical life: 50,000 cycles

  • Panel thickness: 1 - 6mm

  • Nut torque: 5 - 14Nm

  • Operation pressure: About 5N

  • Operation stroke: About 2.0mm

  • Protection level: IP67, IK08

  • Mounting Cut Hole: 12mm

  • Head Diameter: 14mm

  • Operation Type: Self-locking (Latching)

  • Switch Contact: 1NO 1NC

  • Head Shape: High Flush

  • Contact Material: Silver Alloy

  • Button Material: Stainless Steel

  • Base Material: PA66

  • Color: Silver / Chrome

12mm 0.47 Waterproof Self-locking Latching Stainless Steel Metal Push Button Switch High Flush 2A36VDC 1NO.jpg

Note: all the descriptions and prices are subject to change without prior notice.

Free Shipping: No

Shipping Weight/Unit(g): 8.00

Std. Packing Qty. (pcs): 50
