Specifications:
Temperature Range: -55~+155°C (PE Cable -40~+85°C)
Impedance:50Ω
Frequency Range:DC-11GHz
Insertion Loss:Less than or equal to 0.24dB/6GHz
Withstanding Voltage:2500V r.m.s at sea level
Working Voltage:1000Vr.m.s at sea level
Insulation Resistance: ≥ 5000 MΩ
Durability: ≥ 500(cycles)
Contact resistance:CenterContact ≤ 1mΩ,
Outer Contact ≤ 1mΩ
Voltage Standing Wave Ratio: Straight ≤ 1.15/6GHz
Right angle≤ 1.25/6GHz
Package includes:

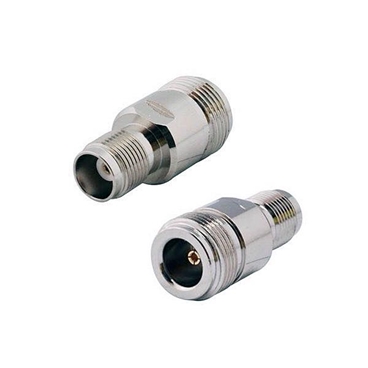

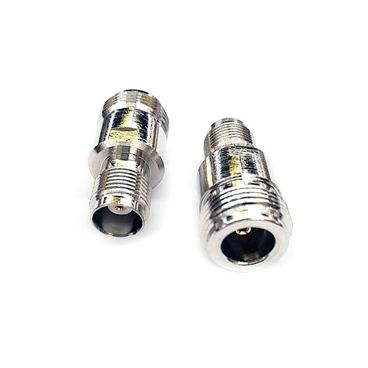

1 X N Female Type Connector Adaptor To TNC Female
Note: all the descriptions and prices are subject to change without prior notice.
