AMPHENOL UHF/PL-259 Male Solder Coax Connector for 50ohm Low Loss RG-58 RF Cable

SKU
CON-CO-004
MOQ
50
Packaging
50pcs/lot
Unit Price
$0(based on 200+)
Unit Price
Login For Price
Qty
- +

Payment Accepted

Bulk Order

Unit Price

<100 0
100+ 0
200+ 0
500+ RFQ

Buyer Protection

  • Full Refund if you don't receive your order
  • Full or Partial Refund, if the item is not as described

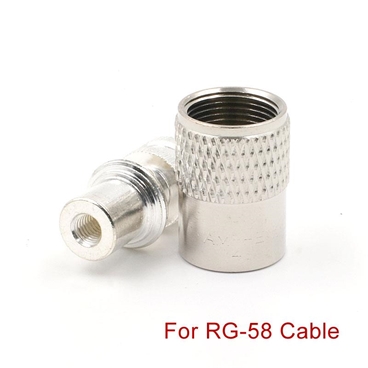

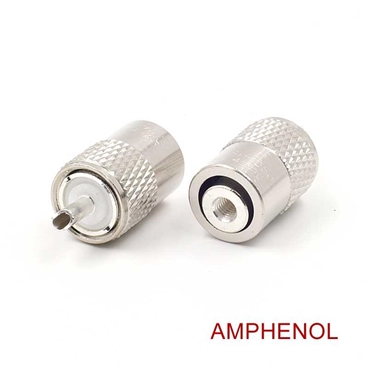

This AMPHENOL connector works with 50ohm low loss RF cable RG-58

Ideal for build or repair coaxial cables,use this connector to create your own UHF cable which is widely used in Wireless Communications Systems, Short Antenna Feeder runs or any other application (e.g. WLL, GPS, LMR, WLAN, WISP, WiMax, SCADA, Mobile Antennas).Top DIY solution

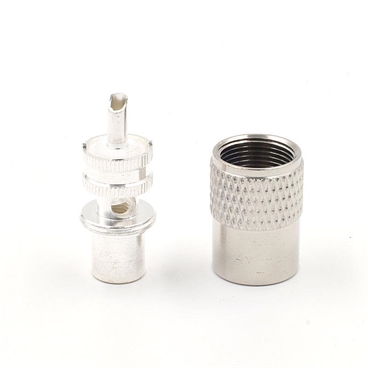

Silver plated body, pin,and sleeve good for conductivity and easier soldering.

The dielectric is Teflon to handle higher power and withstand high temperature when soldering and will not Melt

All metal parts are made of brass copper, premium quality connector.

Impedance :50 ohm



Reference:

TypeImpedanceCore (mm)DielectricOutside   diameterShieldsRemarksMax. attenuation,   750 MHz
(ohms)Type(VF)(in)(mm)(in)(mm)(dB/100 ft)
RG-8/U502.17PE
0.2857.20.40510.3
Amateur   radio; Thicknet (10BASE5) is similar5.967[22]
RG-8X501PF0.750.1854.70.2426.1DoubleA thinner   version, with the electrical characteristics of RG-8U in a diameter similar   to RG-6.[23]10.946[22]
RG-9/U51
PE


0.4210.7


RG-11/U751.63PE0.66-.850.2857.20.41210.5Dual/triple/quadLow   loss at high frequency for cable and satellite television. Used for long   drops and underground conduit, similar to RG7 but generally lower loss.[24][25]3.65
RG-56/U481.4859



0.3087.82Dual   braid shieldedRated   to 8000 volts, rubber dielectric
RG-58/U500.81PE0.660.1162.90.1955SingleUsed   for radiocommunication and amateur radio, thin Ethernet (10BASE2) and NIM   electronics, Loss 1.056 dB/m @ 2.4 GHz. Common.[26]13.104[22]
RG-59/U750.64PE0.660.1463.70.2426.1SingleUsed   to carry baseband video in closed-circuit television, previously used for   cable television. In general, it has poor shielding but will carry an HQ HD   signal or video over short distances.[27]9.708[22]
RG-59A/U750.762PF0.780.1463.70.2426.1SingleSimilar   physical characteristics as RG-59 and RG-59/U, but with a higher velocity   factor. 8.9@700 MHz8.900[28]


Note: all the descriptions and prices are subject to change without prior notice.

Free Shipping: No

Shipping Weight/Unit(g): 30.00

Std. Packing Qty. (pcs): 50
