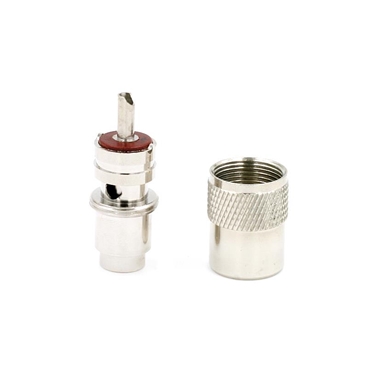

UHF/PL-259 Male Solder Coax Connector With Reducer for 50ohm Low Loss RG-58 RF Cable

SKU
CON-CO-032
Customer #
MOQ
100
Packaging
100pcs/lot
Unit Price
RFQ

Payment Accepted

Bulk Order

Unit Price

<200 RFQ
200+ RFQ
500+ RFQ
1000+ RFQ

Buyer Protection

  • Full Refund if you don't receive your order
  • Full or Partial Refund, if the item is not as described

Suitable for Video Headend Applications.

Nickel-Plated machined brass construction, gold plated contacts and derlin insulator.

High reliability, strong vibration resistance, good mechanical and electrical performance.

Radio equipment and instrument, and ground transmission system, which are widely used in the vibration and harsh environment, are widely used in radio frequency coaxial cable.

Impedance: 50 ohm

Compatible for: RF cable RG-58





UHF PL259 Solder Connector Plug for RG8X RG-59 Coaxial Coax Cable.jpgVSUHFPL-259 Male Solder Coax Connector With Reducer for 50ohm Low Loss RG-58 RF Cable.jpg
UHF PL259 Solder Connector Plug for RG8X RG-59 Coaxial Coax Cable
UHF/PL-259 Male Solder Coax Connector With Reducer for 50ohm Low Loss RG-58 RF Cable







Reference:

TypeImpedanceCore (mm)DielectricOutside   diameterShieldsRemarksMax. attenuation,   750 MHz
(ohms)Type(VF)(in)(mm)(in)(mm)(dB/100 ft)
RG-8/U502.17PE
0.2857.20.40510.3
Amateur   radio; Thicknet (10BASE5) is similar5.967[22]
RG-8X501PF0.750.1854.70.2426.1DoubleA thinner   version, with the electrical characteristics of RG-8U in a diameter similar   to RG-6.[23]10.946[22]
RG-9/U51
PE


0.4210.7


RG-11/U751.63PE0.66-.850.2857.20.41210.5Dual/triple/quadLow   loss at high frequency for cable and satellite television. Used for long   drops and underground conduit, similar to RG7 but generally lower loss.[24][25]3.65
RG-56/U481.4859



0.3087.82Dual   braid shieldedRated   to 8000 volts, rubber dielectric
RG-58/U500.81PE0.660.1162.90.1955SingleUsed   for radiocommunication and amateur radio, thin Ethernet (10BASE2) and NIM   electronics, Loss 1.056 dB/m @ 2.4 GHz. Common.[26]13.104[22]
RG-59/U750.64PE0.660.1463.70.2426.1SingleUsed   to carry baseband video in closed-circuit television, previously used for   cable television. In general, it has poor shielding but will carry an HQ HD   signal or video over short distances.[27]9.708[22]
RG-59A/U750.762PF0.780.1463.70.2426.1SingleSimilar   physical characteristics as RG-59 and RG-59/U, but with a higher velocity   factor. 8.9@700 MHz8.900[28]


Note: all the descriptions and prices are subject to change without prior notice.

Free Shipping: No

Shipping Weight/Unit(g): 23.00

Std. Packing Qty. (pcs): 100
