16mm Momentary Push Button Switch with 12V LED Ring Light

SKU
SW-PB-048
Customer #
MOQ
50
Packaging
50pcs/lot
Unit Price
RFQ

Payment Accepted

Bulk Order

Unit Price

<200 RFQ
200+ RFQ
500+ RFQ
1000+ RFQ

Buyer Protection

  • Full Refund if you don't receive your order
  • Full or Partial Refund, if the item is not as described

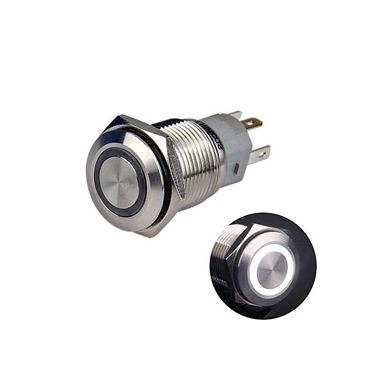

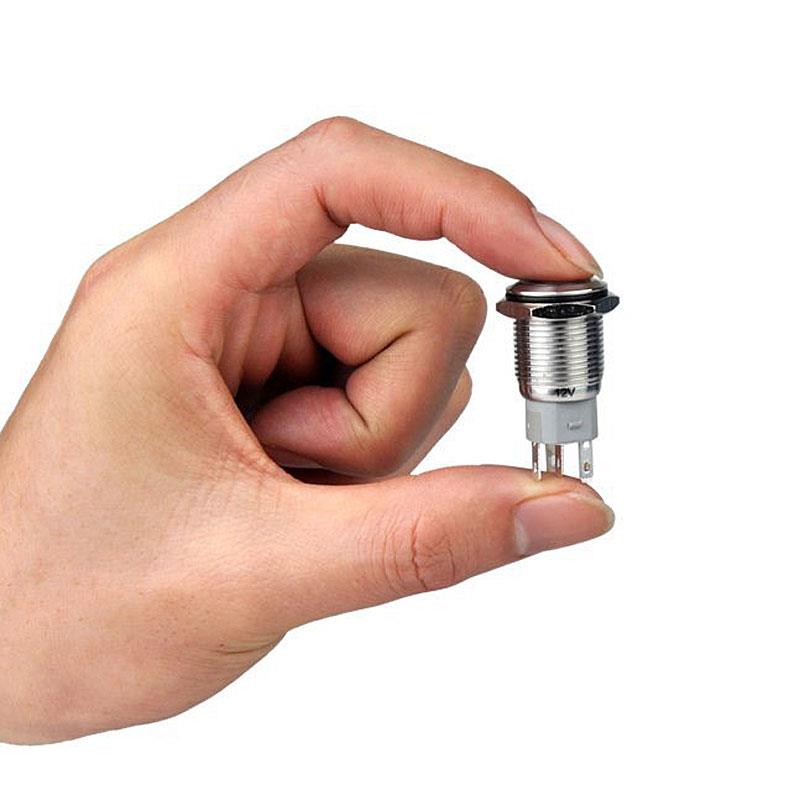

This is a perfect choice if you are in need of a rugged push button! These push buttons are a very tough, small, panel-mount momentary switch with an illuminated white LED ring. It is a SPDT with 16mm threading and 1mm pitch. These buttons are rated up to 5A and 250VAC while the LED is rated for 5-12V. The higher the voltage value, the brighter the LED. You can add a wire connector, then you don't need to solder the terminals, make installing very easy.

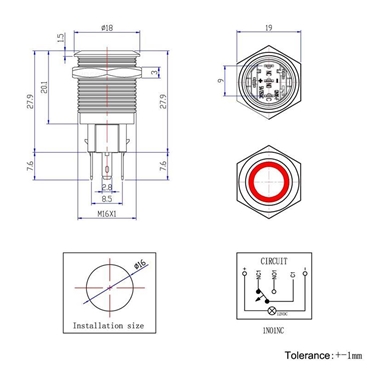

Specifications

Head diameter: 3/4"" ( 18mm )

Button diameter: 0.36"" ( 9mm )

Mounting hole size: 5/8"" ( 16mm )

Depth inc contacts: 1.3"" ( 34mm )

Switch combination: 1NO1NC

Operation types: Momentary (normally open, remain in ON state as long as being pressed )

Switch rating: 5A/250VAC, 5A/30VDC

LED rating: 15mA, AC/DC 12V

Head shape: Flat head

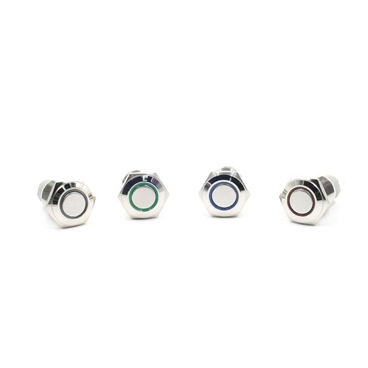

Lamp type: Ring Illuminated RedBlueGreenOrangeWhite (Ship Red if not specified)

Enclosure material: Stainless steel

Protection level: IP67, IK10



Pin Variations

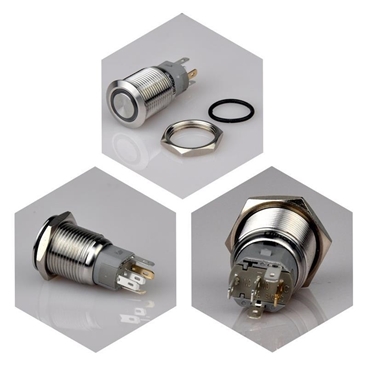

These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged in the water。

Note: all the descriptions and prices are subject to change without prior notice.

Free Shipping: No

Shipping Weight/Unit(g): 13.60

Std. Packing Qty. (pcs): 50
